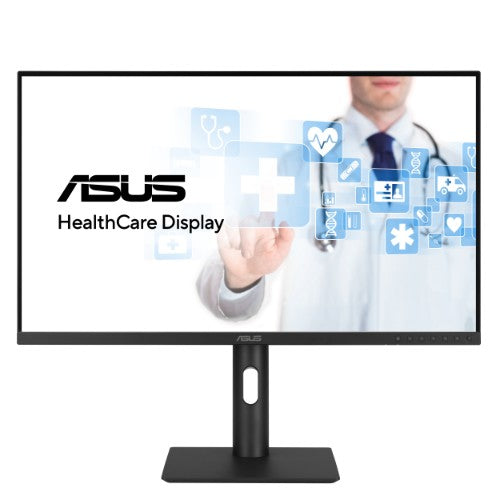

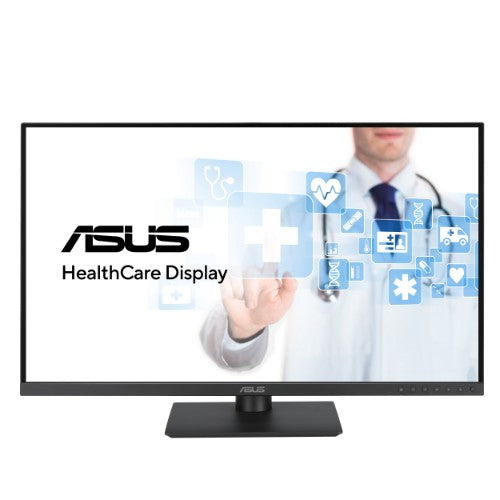

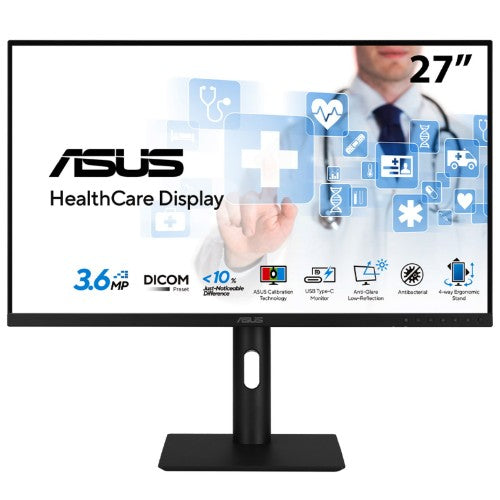

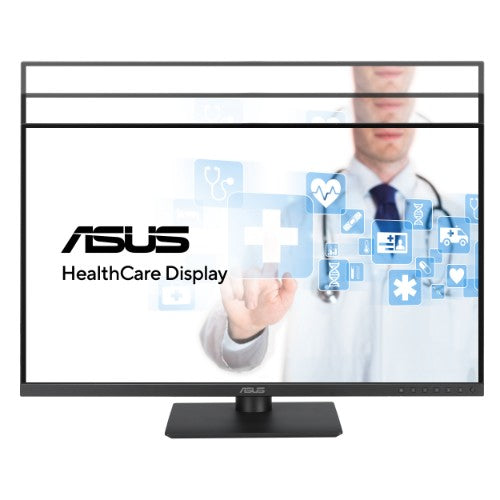

ASUS HA2741A computer monitor 68.6 cm (27") 2560 x 1440 pixels Quad HD LCD Black

HA2741A HealthCare Monitor – 27-inch, 3.6MP (2560 x 1440), AGLR, DICOM Part 14 GSDF, DICOM Preset, Auto Calibration, JND < 10%, Antibacterial Treatment, USB-C, HDMI, DisplayPort Daisy-chain, Ergonomic Stand

Key Features

• 27-inch 3.6MP (2560 x 1440) frameless design with IPS 178° wide viewing angle panel
• Anti-Glare, Low-Reflection (AGLR) with Eye Care+ to protect eyes from long time use
• Compliant with DICOM Part 14 GSDF standard
• DICOM Preset and auto compensation of DICOM curve for ambient light changing
• ASUS exclusive Auto calibration to ensures DICOM accuracy
• Factory calibrated to ensures JND < 10%
• Multiple I/O for flexibility: DisplayPort with Daisy-chain, HDMI, USB-C and USB hub
• Ergonomic design with tilt, swivel, pivot and height adjustments for a comfortable viewing experience
• Proprietary long-lasting antibacterial treatment inhibits the growth of bacteria and fungi on the monitor head
• IEC 62368-1, IEC 60601-1-2, AAPM TG270, IEC63563-1 and ISO13485 Compliance

Description

HealthCare Monitor
ASUS HealthCare Displays provides comprehensive line-up targeting for every HealthCare institutions needs. ASUS HealthCare Displays are factory calibrated with DICOM® Part 14 GSDF (Grayscale Standard Display Function) compliance to ensure visual accuracy and consistency in finest details. ASUS HA2741A features 27-inch 3.6MP Anti-Glare, Low-Reflection (AGLR) IPS panel, ASUS exclusive Hardware Calibration Technology supports auto calibration to keep DICOM long term accuracy. ASUS HealthCare Displays delivers high-performance, precise and stable capabilities to fit any scenario.

Lifelike Views Vith 178° Wide View Angle
ASUS HA2741A IPS panel provides 178° viewing angles, both horizontally and vertically, so you can reproduce excellent contrast, ensuring the accurate and clear medical images from almost any direction.

Specifications

Display
HDCP	Yes
Display brightness (typical)	300 cd/m²
Screen shape	Flat
Display number of colours	16.7 million colours
Native aspect ratio	16:9
Colour gamut	100%
Maximum refresh rate	75 Hz
HD type	Quad HD
Display technology	LCD
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Pixel pitch	0.233 x 0.233 mm
Viewable size, horizontal	59.7 cm
Viewable size, vertical	33.6 cm
Backlight type	LED
Display resolution	2560 x 1440 pixels
Response time	5 ms
Display diagonal	68.6 cm (27")
Contrast ratio (typical)	900:1
Touchscreen	No
Panel type	IPS
Display diagonal (metric)	69 cm
LED backlight	Yes
Colour gamut standard	sRGB
Anti-glare screen	Yes
Audio
Built-in speaker(s)	No
Performance
Built-in speaker(s)	No
Built-in camera	No
Low Blue Light technology	Yes
Flicker-free technology	Yes
Brand specific technologies	Eye Care+
Multimedia
Built-in speaker(s)	No
Built-in camera	No
Design
Market positioning	Medical
Feet colour	Black
Product colour	Black
Frameless design	Yes
Camera
Built-in camera	No
Ports & interfaces
Built-in USB hub	Yes
USB hub version	3.2 Gen 1 (3.1 Gen 1)
USB Type-A downstream ports quantity	3
USB Type-C downstream ports quantity	1
Headphone out	Yes
HDMI ports quantity	1
DisplayPorts quantity	2
HDCP	Yes
Headphone outputs	1
HDMI	Yes
HDMI version	2.0
DisplayPort version	1.4
USB Power Delivery (USB PD)	Yes
USB Power Delivery up to	15 W
USB Type-C DisplayPort Alternate Mode	Yes
Number of USB Type-C upstream ports quantity	1
HDCP version	2.2
Technical details
Height (without stand)	363.4 mm
Depth (without stand)	44.9 mm
Width (without stand)	613.3 mm
Feet colour	Black
Cable lock slot	Yes
HDMI	Yes
Product colour	Black
Sustainability compliance	Yes
Sustainability certificates	Forest Stewardship Council (FSC) Mix, ENERGY STAR
Power supply type	External
Weight (with stand)	6.7 kg
Touchscreen	No
Ergonomics
Wall mountable	Yes
VESA mounting	Yes
Cable lock slot	Yes
Panel mounting interface	100 x 100 mm
Swivelling	Yes
Swivel angle range	-30 - 30°
Tilt angle range	-5 - 23°
Pivot	Yes
Pivot angle	-90 - 90°
Height adjustment	Yes
Cable lock slot type	Kensington
Tilt adjustment	Yes
Adjustable height (max)	13 cm
Power
Power supply type	External
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	13.7 W
Power consumption (off)	0.3 W
Energy efficiency scale	A to G
Energy efficiency class (SDR)	D
Energy efficiency class (HDR)	F
Energy consumption (SDR) per 1000 hours	17 kWh
Energy consumption (HDR) per 1000 hours	23 kWh
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 90%
Weight & dimensions
Height (without stand)	363.4 mm
Depth (without stand)	44.9 mm
Width (without stand)	613.3 mm
Width (with stand)	613.3 mm
Depth (with stand)	197.2 mm
Height (with stand)	536.7 mm
Weight (with stand)	6.7 kg
Weight (without stand)	5 kg
Package width	695 mm
Package depth	133 mm
Package height	421 mm
Package weight	9.3 kg
Packaging data
Package width	695 mm
Package depth	133 mm
Package height	421 mm
Package weight	9.3 kg
Package type	Box
Sustainability
Sustainability compliance	Yes
Sustainability certificates	Forest Stewardship Council (FSC) Mix, ENERGY STAR
Other features
Brand specific technologies	Eye Care+
Height (without stand)	363.4 mm
Depth (without stand)	44.9 mm
Width (without stand)	613.3 mm
HDMI	Yes
USB Power Delivery up to	15 W
Energy efficiency scale	A to G
USB Type-C DisplayPort Alternate Mode	Yes
Power supply type	External
Touchscreen	No
USB Power Delivery (USB PD)	Yes
Package type	Box
