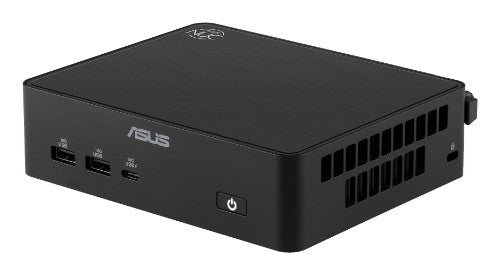

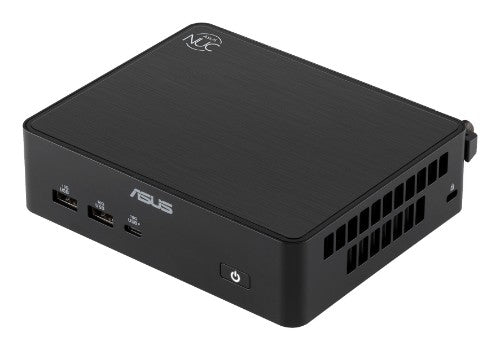

ASUS NUC 16 Pro RNUC16GDKU760002 Black 356H

Intel Core Ultra 7 356H Processor, 2 x SO-DIMM, DDR5, WLAN, LAN

Key Features

• Powered by up to Intel Core Ultra X9 CPU, Arc B390 GPU, and NPU 5, it enables AI-accelerated hybrid computing, delivering up to 180 TOPS for real-time Edge AI
• Up to 96 GB LPDDR5x 9600 MT/s with 20% faster speed and 50% lower power, plus dual-fan cooling for sustained peak performance
• Wi-Fi 7, Bluetooth 6.0, and dual 2.5G LAN provide low-latency, redundant, and secure connectivity for enterprise and Edge AI
• Built-in firmware TPM 2.0 provides enterprise-grade data protection and compliance, enabling IT professionals to securely manage devices and scale services with ease
• Compact 5×4 chassis with Tool-less 2.0 design supports dual M.2 Gen5/Gen4 SSDs, maximizing airflow, flexibility, and performance
• Rugged modular build with long-life availability and rich I/O, including RS-232 and PCIe x1, for POS, IoT, and industrial deployment

Description

Faster, Smarter, More Secure For the AI-Driven Enterprise
The ASUS NUC 16 Pro mini PC features up to the latest Intel® Core™ Ultra X9 series 3 processor featuring Intel Arc™, delivering up to 1.5X-faster gen-on-gen 3D graphics performance, and supports up to 96GB of lightning-fast LPDDR5x memory—all while boasting incredible energy efficiency. Built-in firmware TPM 2.0 (fTPM 2.0) handles data security and management, while dual 2.5G LAN and two HDMI® ports ensure convenient connectivity. Its AI-ready performance and robust security make the NUC 16 Pro ideal for businesses.

Specifications

Processor
Built-in processor	Yes
Processor model	356H
Processor boost frequency	4.7 GHz
Processor threads	16
Processor cores	16
Processor family	Intel Core Ultra 7
Processor manufacturer	Intel
Processor cache	18 MB
Performance cores	4
Efficient cores	8
Performance-core Max Turbo Frequency	4.7 GHz
Efficient-core Max Turbo Frequency	3.5 GHz
Performance-core base frequency	1.9 GHz
Efficient-core base frequency	1.5 GHz
Low Power Efficient-cores	4
Low Power Efficient-core Max Turbo Frequency	3.3 GHz
Low Power Efficient-core Base Frequency	1500 MHz
Processor generation	Intel® Core™ Ultra (Series 3)
Memory
Memory slots type	SO-DIMM
Number of memory slots	2
Memory channels	Dual-channel
Maximum internal memory	128 GB
Internal memory installed	No
Video
On-board graphics card	Yes
Graphics card family	Intel
Storage
Supported storage drive types	SSD
Storage drive sizes supported	M.2
Storage drive interface	PCI Express
Number of storage drives supported	2
Maximum storage capacity	8 TB
SSD form factor	M.2
Storage drives installed	No
Graphics
On-board graphics card	Yes
Graphics card family	Intel
On-board graphics card model	Intel® Graphics
Performance
Trusted Platform Module (TPM) version	2.0
Trusted Platform Module (TPM)	Yes
Audio
Built-in speaker(s)	No
Network
Wi-Fi standards	Wi-Fi 7 (802.11be)
Bluetooth version	6.0
Bluetooth	Yes
Ethernet LAN	Yes
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 7 (802.11be)

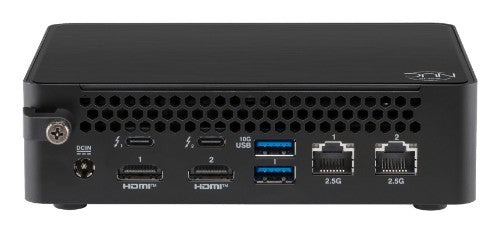

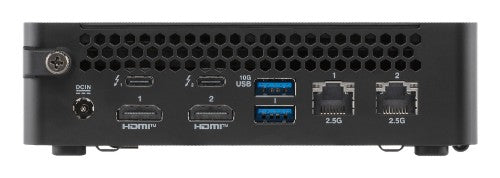

Ports & interfaces
DC-in jack	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
HDMI version	2.1
VGA (D-Sub) ports quantity	0
USB 2.0 ports quantity	0
HDMI ports quantity	2
Ethernet LAN (RJ-45) ports	2
Thunderbolt 4 ports quantity	2
Design
VESA mounting	Yes
Product type	Mini PC barebone
Cable lock slot type	Kensington
Cable lock slot	Yes
On/off switch	Yes
Cooling type	Active
Product colour	Black
Processor special features
Low Power Efficient-cores	4
Low Power Efficient-core Max Turbo Frequency	3.3 GHz
Low Power Efficient-core Base Frequency	1500 MHz
Colour
Product colour	Black
Technical details
Cable lock slot type	Kensington
Cable lock slot	Yes
Trusted Platform Module (TPM) version	2.0
Trusted Platform Module (TPM)	Yes
Processor cores	16
Cooling type	Active
Management features
On/off switch	Yes
Power
Power supply type	External AC adapter
Operational conditions
Storage temperature (T-T)	-40 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 92%
Weight & dimensions
Width	144 mm
Depth	117 mm
Height	42 mm
