Lenovo

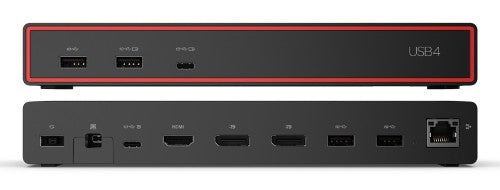

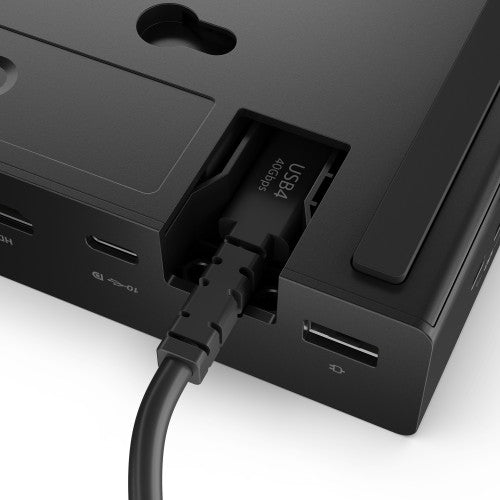

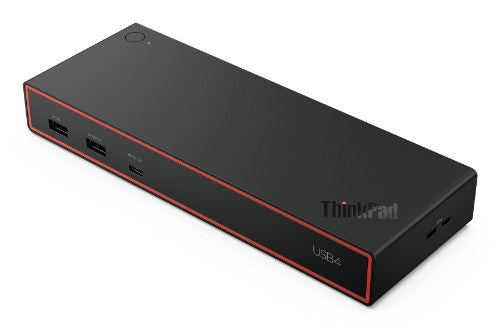

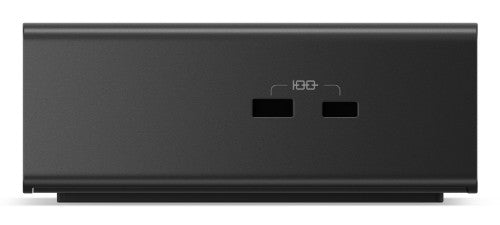

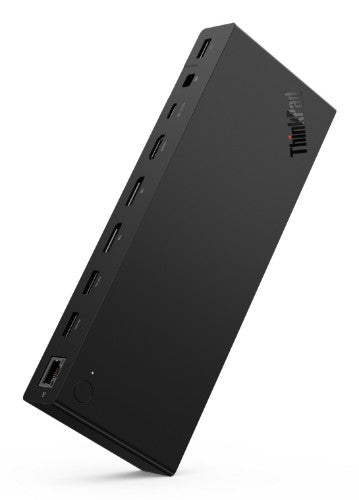

Lenovo 40BF0135UK laptop dock/port replicator Wired USB4 Black
Lenovo 40BF0135UK laptop dock/port replicator Wired USB4 Black
SKU:40BF0135UK
Regular price
£139.61
Regular price
£211.80
Sale price
£139.61
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
ThinkPad USB4 Dock 5000 (with 135W Adapter)
Key Features
- The ThinkPad® USB4 Dock 5000 supports 100W PD 3.1 charge power
- Data speed up to 40Gbps to system
- 1 x 8K@60Hz or 4 x 4K@60Hz display support
- 1Gb Ethernet, support WOL, PXE Boot, MAC address pass thru on ThinkPad Notebooks
- Universal Dock Compatibility a cross different Operating System
Description
Designed to enhance everyday productivity, the Lenovo™ ThinkPad® USB4 Dock 5000 is the Successor of our famous Universal USB-C Dock equipped with cutting edge USB4 Technology. The dock can connect to your laptop with 40Gbps bandwidth USB4 upstream connectivity, that allows you to extend your monitor setup with more pixels and higher refresh rates. The 135W power adapter can boost the charge power up to 100W to your laptop.Specifications

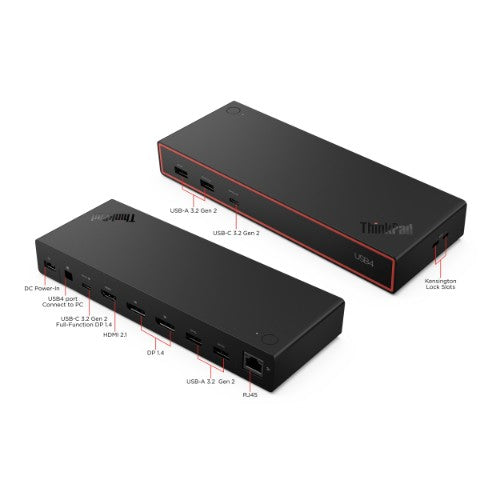

| Ports & interfaces | |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| Host interface | USB4 |
| USB 2.0 ports quantity | 0 |

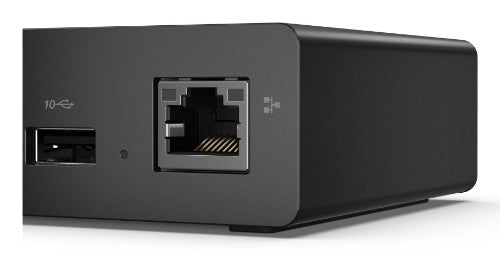

| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 2 |
| Microphone in | No |
| Headphone outputs | 0 |
| DC-in jack | Yes |
| Connectivity technology | Wired |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 100 W |
| DisplayPort version | 1.4 |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Performance | |
| Maximum digital resolution | 3840 x 2160 pixels |
| Number of displays supported | 4 |
| On/off switch | Yes |
| Product colour | Black |
| Card reader integrated | No |
| Brand compatibility | Lenovo |
| Compatibility | ThinkBook, ThinkPad, Yoga |
| Cable lock slot | Yes |
| Certification | FCC/ICES, CE, KCC, RCM, BSMI, VCCI, CB, cULus, EAC, TUV- Mark, LoA, Ukraine DoC, NOM |
| Cable lock slot type | Nano, MicroSaver |
| HD type | 4K Ultra HD |
| Colour name | Eclipse Black |
| Maximum refresh rate | 60 Hz |
| Technical details | |
| Product colour | Black |
| Brand compatibility | Lenovo |
| Compatibility | ThinkBook, ThinkPad, Yoga |
| Cable lock slot | Yes |
| Warranty period | 3 year(s) |
| Storage | |
| Card reader integrated | No |
| Power | |
| Power source type | DC |
| Power supply | 135 W |
| Software | |
| Windows operating systems supported | Windows 11 |
| Mac operating systems supported | Mac OS X 14.0 Sonoma, Mac OS X 15.0 Sequoia |
| Linux operating systems supported | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 95% |
| Weight & dimensions | |
| Weight | 470 g |
| Width | 218 mm |
| Depth | 80 mm |
| Height | 31.5 mm |
| Package weight | 1.03 kg |
| Design | |
| Windows operating systems supported | Windows 11 |
| Mac operating systems supported | Mac OS X 14.0 Sonoma, Mac OS X 15.0 Sequoia |
| Product colour | Black |
| Cable lock slot | Yes |
| Certification | FCC/ICES, CE, KCC, RCM, BSMI, VCCI, CB, cULus, EAC, TUV- Mark, LoA, Ukraine DoC, NOM |
| Cable lock slot type | Nano, MicroSaver |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package weight | 1.03 kg |

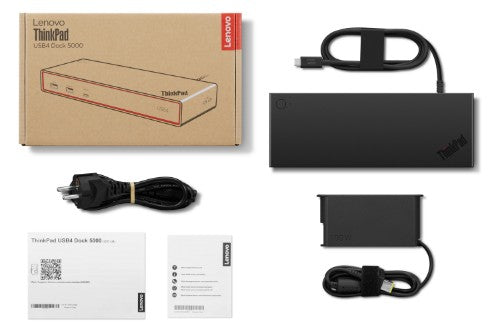

| Packaging content | |
| Cables included | AC, USB Type-C |
| AC adapter included | Yes |
| Quantity per pack | 1 pc(s) |
| Certificates | |
| Certification | FCC/ICES, CE, KCC, RCM, BSMI, VCCI, CB, cULus, EAC, TUV- Mark, LoA, Ukraine DoC, NOM |
