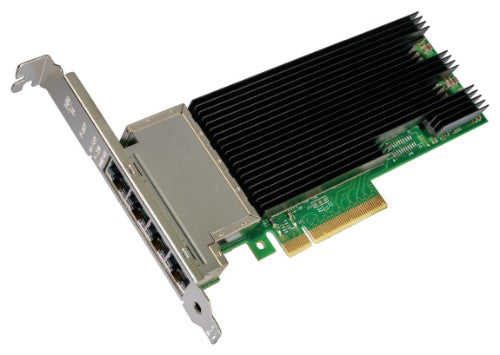

Lenovo 4XC7A80268 network card Internal Ethernet 10000 Mbit/s

ThinkSystem Intel X710-T4L 10GBase-T 4-Port OCP Ethernet Adapter

Description

The Intel X710 family of 10 Gigabit Ethernet (GbE) server network adapters addresses the demanding needs of the next-generation data center. By providing unmatched features for server and network virtualization, small packet performance, and low power; the data center network is flexible, scalable, and resilient.

Specifications

Ports & interfaces
Internal	Yes
Ethernet LAN (RJ-45) ports	4
Interface	Ethernet
Host interface	PCI Express
Connectivity technology	Wired
Bandwidth
Maximum data transfer rate	10000 Mbit/s
Antenna
Antenna	No
Network
Maximum data transfer rate	10000 Mbit/s
Design
Antenna	No
Certification	EN55022 EN55024 EN 61000-3-2 EN 61000-3-3 ICES-003, Issue-004 FCC 47 CFR Part 15 Class A VCCI AS/NZS CISPR 22 / C-tick RRL for KC BSMI UL 94 V-1
Internal	Yes
Component for	Server
Operational conditions
Operating temperature (T-T)	0 - 55 °C
Storage temperature (T-T)	-20 - 65 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 80%
Weight & dimensions
Width	15 mm
Depth	167 mm
Height	111 mm
Certificates
Certification	EN55022 EN55024 EN 61000-3-2 EN 61000-3-3 ICES-003, Issue-004 FCC 47 CFR Part 15 Class A VCCI AS/NZS CISPR 22 / C-tick RRL for KC BSMI UL 94 V-1
