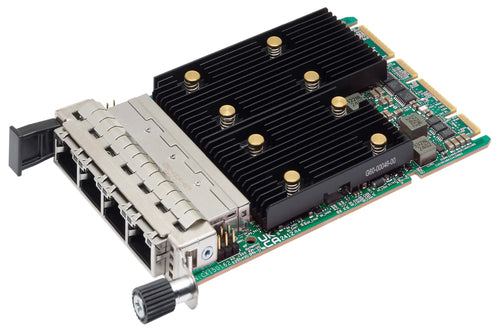

Lenovo 4XC7A95696 network card Internal Ethernet 10000 Mbit/s

ThinkSystem Broadcom 57412 10GBase-T 4-Port OCP Ethernet Adapter

Description

The ThinkSystem Broadcom 57412 10GBASE-T Ethernet Adapters are four port 10 Gb Ethernet adapters that supports 10GBASE-T and 1000BASE-T Ethernet on Category 6 twisted-pair cables. They support networking virtualization technologies such as SR-IOV, VXLAN, and NVGRE.

This product guide provides essential presales information to understand the 57412 10GBASE-T adapters and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the adapters and consider their use in IT solutions.

Specifications

Ports & interfaces
Internal	Yes
PCI version	3.0
Ethernet LAN (RJ-45) ports	4
PCI Card form factor	Full-height (low-profile)
Interface	Ethernet
Host interface	OCP 3.0
Connectivity technology	Wired
Bandwidth
Maximum data transfer rate	10000 Mbit/s
Technical details
Product colour	Multicolour
PCI Card form factor	Full-height (low-profile)
Network
Ethernet interface type	10 Gigabit Ethernet, Gigabit Ethernet
Jumbo frames	9600
Ethernet LAN	Yes
Cabling technology	10GBase-T
Networking standards	IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3an
Jumbo frames support	Yes
Ethernet LAN data rates	1000,10000 Mbit/s
Maximum data transfer rate	10000 Mbit/s
Link aggregation	Yes
Design
Product colour	Multicolour
Internal	Yes
PCI Card form factor	Full-height (low-profile)
Component for	Server
Operational conditions
Operating temperature (T-T)	0 - 55 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	5 - 95%
Weight & dimensions
Width	168 mm
Height	69 mm
Other features
Jumbo frames	9600
