Lenovo
Lenovo 4XH1C95567 laptop dock/port replicator Wired USB 3.2 Gen 1 (3.1 Gen 1) Type-C Black
Lenovo 4XH1C95567 laptop dock/port replicator Wired USB 3.2 Gen 1 (3.1 Gen 1) Type-C Black
SKU:4XH1C95567
Regular price
£227.23
Regular price
Sale price
£227.23
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability

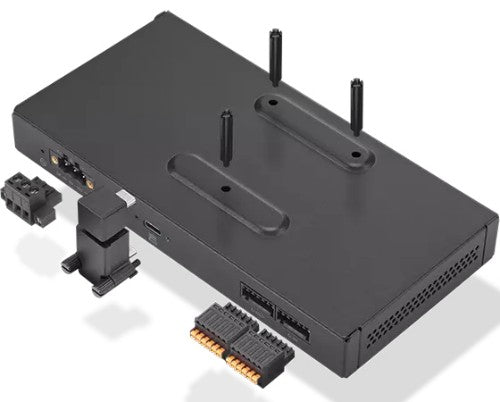

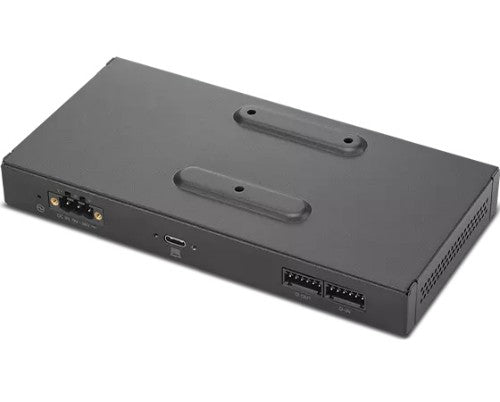

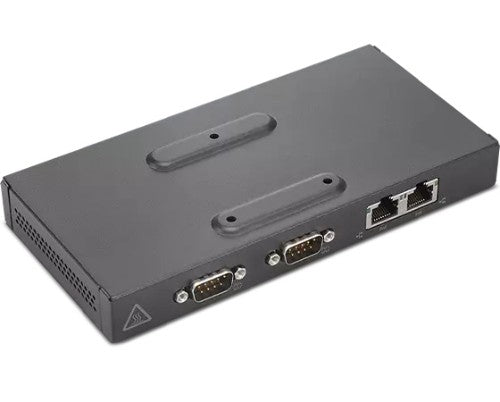

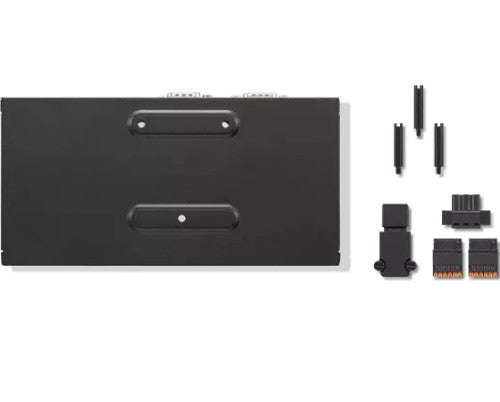

ThinkEdge SE30 IO Box
Description
The ThinkEdge SE30 IOBOX connects to ThinkEdge SE30 via a Type-C connection, providing extra vertical IO offerings such as Power over Ethernet (PoE), Digital Input/Output, and a Serial port (RS232/422/485) offering flexibility and adaptability during Retail, Manufacturing, and Smart Building system integration. One DC cable provides voltage input to the IOBOX and PC device simultaneously, saving customers the extra burden of an AC/DC power transfer in industrial DC power supply environments.Specifications
| Ports & interfaces | |
|---|---|
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| Serial ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| Microphone in | No |
| Connectivity technology | Wired |
| Network | |
| Full duplex | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
| Performance | |
| Full duplex | Yes |
| Product colour | Black |
| Card reader integrated | No |
| Brand compatibility | Lenovo |
| LED indicators | Power |
| Certification | CE,FCC,cTUVus，ICES,RCM，KCC,VCCI,BSMI,EAC，MOROCCO |
| Technical details | |
| Product colour | Black |
| Brand compatibility | Lenovo |
| Overload protection | Yes |
| User guide | Yes |
| Storage | |
| Card reader integrated | No |
| Power | |
| Overload protection | Yes |
| Software | |
| Windows operating systems supported | Windows 10 x64 |
| Indication | |
| LED indicators | Power |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Weight | 506 g |
| Width | 178 mm |
| Depth | 88 mm |
| Height | 25.6 mm |
| Package weight | 650 g |
| Package width | 227 mm |
| Package depth | 175 mm |
| Package height | 31 mm |
| Design | |
| Windows operating systems supported | Windows 10 x64 |
| Product colour | Black |
| LED indicators | Power |
| Certification | CE,FCC,cTUVus，ICES,RCM，KCC,VCCI,BSMI,EAC，MOROCCO |
| Packaging data | |
| Package weight | 650 g |
| Package width | 227 mm |
| Package depth | 175 mm |
| Package height | 31 mm |
| Packaging content | |
| User guide | Yes |
| Warranty card | Yes |
| Certificates | |
| Certification | CE,FCC,cTUVus，ICES,RCM，KCC,VCCI,BSMI,EAC，MOROCCO |
| Other features | |
| Overload protection | Yes |
