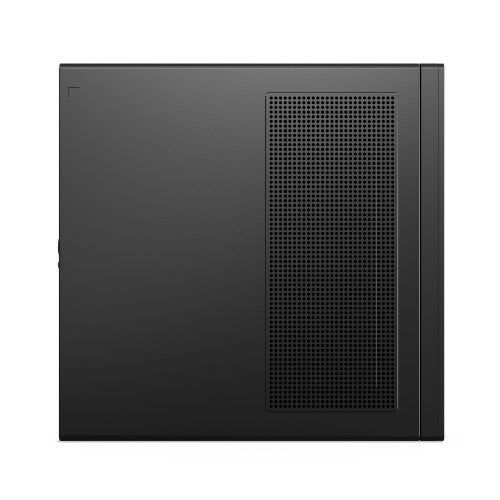

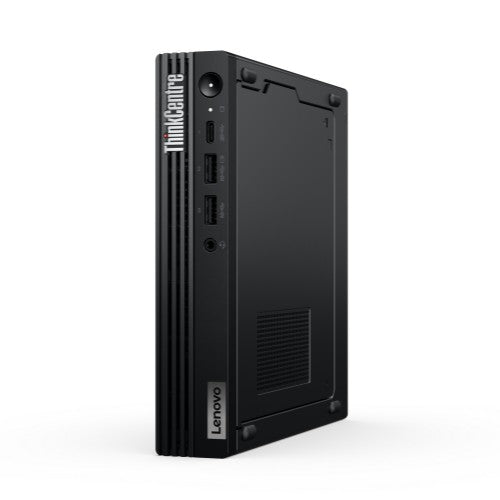

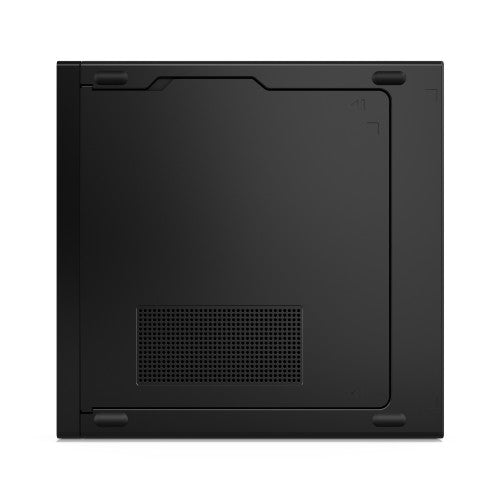

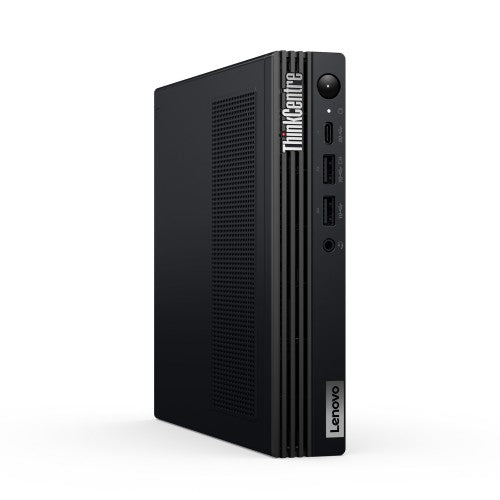

Intel Core i7-14700, 20C (8P + 12E)/28T, Max Turbo up to 5.4GHz, P-core 2.1/5.3GHz, E-core 1.5/4.2GHz, 33MB Intel Smart Cache, 1x 16GB SODIMM DDR5-5600, 512GB SSD M.2 2280 PCIe 4.0x4 NVMe Opal 2.0, Intel UHD Graphics 770, Windows 11 Pro

Key Features

• Intel Core i7-14700, 20C (8P + 12E)/28T, Max Turbo up to 5.4GHz, P-core 2.1/5.3GHz, E-core 1.5/4.2GHz, 33MB Intel Smart Cache
• 1x 16GB SODIMM DDR5-5600
• 512GB SSD M.2 2280 PCIe 4.0x4 NVMe Opal 2.0
• Intel UHD Graphics 770
• Windows 11 Pro

Reasons To Buy

Performance-Driven, Productivity Perfected

Fueled by Intel® Core™ processor with up to Intel vPro® Enterprise, the ThinkCentre M90q Gen 5 Tiny PC delivers enterprise-grade performance, security, manageability, and reliability — managing businesses of all sizes while boosting productivity, creative output, and digital collaborations with vast memory, storage, and up to WiFi 7.

Workspace Efficiency Redefined

Connect to multiple peripherals via a hub of ports, and enable customization with optional expansion slots such as VGA / DisplayPort / HDMI® / Ethernet (RJ45) / USB-C®, etc. Charge your smartphone readily using the PowerShare USB, even with the PC powered off. Plus, multitask easily with support for up to four independent displays — the sky’s the limit.

Device Convenience Reimagined

With a keyboard shortcut to turn on the desktop, and a quick boot-up process via the Thunder Boot feature, this ThinkCentre PC reflects ease of convenience, making it the perfect choice for modern workspaces. Plus, with Modern Standby, your system remains up-to-date even during sleep mode, and it wakes and connects instantly.

Ultimate PC Security Enabled

Our ThinkShield security encrypts data via the discrete Trusted Platform Module (dTPM), while the self-healing BIOS restores earlier system settings. Secure your PC physically with the Kensington Security Slot™, and choose the Intel vPro® Enterprise platform for multilayer security like Intel® Hardware Shield to block cyberattacks and ransomware.

Effortless Upgrades, Easy Maintenance

Along with a sleek design, the ThinkCentre M90q Gen 5 Tiny desktop is also ready for toolless upgrades, saving IT valuable time. The removable easy-to-clean dust shield assists with upkeep to extend the lifecycle. Plus, an AI-driven fan prevents overheating issues — keeping the system cool and efficient for all-day-long operations.

Future Forward, Future Ready

The M90q Gen 5 uses 85% recycled post-consumer content acrylonitrile butadiene styrene plastics in the chassis. The packaging has 60% post-industry content (PIC), 30% ocean-bound plastic in the thermal shell and bag, and is certified by Forest Stewardship Council® (FSC). Plus, ENERGY STAR® 8.0 and TCO 9.0 ratings minimize energy costs.

Description

Tiny Desktop With Heavyweight Power
- Multilevel security & manageability with up to Intel vPro® Enterprise
- Removable dust shield to assist with upkeep & extend the lifecycle of the system
- Highly configurable compact PC with customizable expansion slots
- Ideal for healthcare, retail, & finance with support for up to 4 monitors

Specifications

Processor
Processor generation	Intel® Core™ i7 (14th gen)
Processor cache type	Smart Cache
Processor cache	33 MB
Processor model	i7-14700
Processor manufacturer	Intel
Processor boost frequency	5.4 GHz
Processor threads	28
Processor cores	20
Processor family	Intel® Core™ i7
Performance cores	8
Efficient cores	12
Performance-core base frequency	2.1 GHz
Efficient-core base frequency	1.5 GHz
Processor base power	65 W
Maximum turbo power	219 W
Efficient-core Max Turbo Frequency	4.2 GHz
Performance-core Max Turbo Frequency	5.3 GHz
Memory
Memory layout (slots x size)	1 x 16 GB
Internal memory	16 GB
Maximum internal memory	64 GB
Memory slots	2x SO-DIMM
Internal memory type	DDR5-SDRAM
Memory clock speed	5600 MHz
Storage
Storage media	SSD
Optical drive type	No
SSD interface	PCI Express 4.0
SSD capacity	512 GB
Number of SSDs installed	1
Card reader integrated	No
Total storage capacity	512 GB
SSD form factor	M.2
Total SSDs capacity	512 GB
NVMe	Yes
Graphics
Discrete graphics card	No
On-board graphics card family	Intel® UHD Graphics
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card model	Intel UHD Graphics 770
On-board GPU manufacturer	Intel
Optical drive
Optical drive type	No
Network
Ethernet LAN	Yes
Wi-Fi	No
Ethernet LAN data rates	100,1000 Mbit/s
Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Thunderbolt 3 ports quantity	0
HDMI version	2.1
USB 2.0 ports quantity	0
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
DisplayPorts quantity	2
USB 3.2 Gen 2x2 Type-C ports quantity	1
Technical details
Cable lock slot type	Kensington
Product type	Mini PC
Trusted Platform Module (TPM)	Yes
Product colour	Black
Chassis type	Mini PC
Audio system	High Definition Audio
Cable lock slot	Yes
Motherboard chipset	Intel Q670
Design
Volume	1 L
Cable lock slot type	Kensington
Product colour	Black
Chassis type	Mini PC
Cable lock slot	Yes
Performance
Audio chip	Realtek ALC233
Number of speakers	1
Product type	Mini PC
Trusted Platform Module (TPM)	Yes
Audio system	High Definition Audio
Motherboard chipset	Intel Q670
Software
Operating system language	English
Operating system installed	Windows 11 Pro
Power
Power supply	230 W
Certificates
Certification	TCO,RoHS
Weight & dimensions
Volume	1 L
Width	179 mm
Depth	182.9 mm
Height	36.5 mm
Weight	1.25 kg
Packaging content
Mouse included	Yes
Keyboard included	Yes
Mouse connectivity	Wired
Keyboard connectivity	Wired
Other features
Number of speakers	1
Trusted Platform Module (TPM)	Yes
On-board graphics card	Yes
Processor manufacturer	Intel
