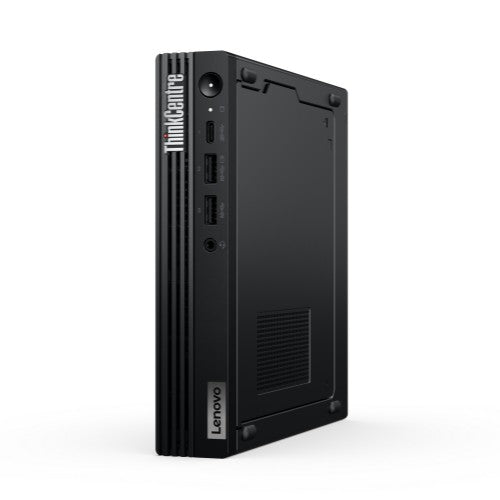

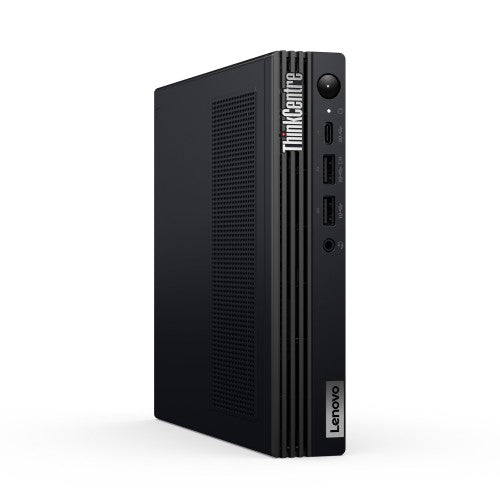

Lenovo ThinkCentre M90q Gen 5 Intel® Core™ i7 i7-14700T 16 GB DDR5-SDRAM 512 GB SSD Windows 11 Pro Mini PC Black

Intel Core i7-14700T, 20C (8P + 12E)/28T, Max Turbo up to 5.2GHz, P-core 1.3/5.0GHz, E-core 0.9/3.7GHz, 33MB Intel Smart Cache, 1x 16GB SODIMM DDR5-5600, 512GB SSD M.2 2280 PCIe 4.0x4 NVMe Opal 2.0, Intel UHD Graphics 770, Intel Wi-Fi 7 BE200 802.11be 2x2 + BT5.3 vPro, Windows 11 Pro

Key Features

• Intel Core i7-14700T, 20C (8P + 12E)/28T, Max Turbo up to 5.2GHz, P-core 1.3/5.0GHz, E-core 0.9/3.7GHz, 33MB Intel Smart Cache
• 1x 16GB SODIMM DDR5-5600
• 512GB SSD M.2 2280 PCIe 4.0x4 NVMe Opal 2.0
• Intel UHD Graphics 770
• Windows 11 Pro

Reasons To Buy

Performance-Driven, Productivity Perfected

Fueled by Intel® Core™ processor with up to Intel vPro® Enterprise, the ThinkCentre M90q Gen 5 Tiny PC delivers enterprise-grade performance, security, manageability, and reliability — managing businesses of all sizes while boosting productivity, creative output, and digital collaborations with vast memory, storage, and up to WiFi 7.

Workspace Efficiency Redefined

Connect to multiple peripherals via a hub of ports, and enable customization with optional expansion slots such as VGA / DisplayPort / HDMI® / Ethernet (RJ45) / USB-C®, etc. Charge your smartphone readily using the PowerShare USB, even with the PC powered off. Plus, multitask easily with support for up to four independent displays — the sky’s the limit.

Device Convenience Reimagined

With a keyboard shortcut to turn on the desktop, and a quick boot-up process via the Thunder Boot feature, this ThinkCentre PC reflects ease of convenience, making it the perfect choice for modern workspaces. Plus, with Modern Standby, your system remains up-to-date even during sleep mode, and it wakes and connects instantly.

Ultimate PC Security Enabled

Our ThinkShield security encrypts data via the discrete Trusted Platform Module (dTPM), while the self-healing BIOS restores earlier system settings. Secure your PC physically with the Kensington Security Slot™, and choose the Intel vPro® Enterprise platform for multilayer security like Intel® Hardware Shield to block cyberattacks and ransomware.

Effortless Upgrades, Easy Maintenance

Along with a sleek design, the ThinkCentre M90q Gen 5 Tiny desktop is also ready for toolless upgrades, saving IT valuable time. The removable easy-to-clean dust shield assists with upkeep to extend the lifecycle. Plus, an AI-driven fan prevents overheating issues — keeping the system cool and efficient for all-day-long operations.

Future Forward, Future Ready

The M90q Gen 5 uses 85% recycled post-consumer content acrylonitrile butadiene styrene plastics in the chassis. The packaging has 60% post-industry content (PIC), 30% ocean-bound plastic in the thermal shell and bag, and is certified by Forest Stewardship Council® (FSC). Plus, ENERGY STAR® 8.0 and TCO 9.0 ratings minimize energy costs.

Description

- Multilevel security & manageability with up to Intel vPro® Enterprise
- Removable dust shield to assist with upkeep & extend the lifecycle of the system
- Highly configurable compact PC with customizable expansion slots
- Ideal for healthcare, retail, & finance with support for up to 4 monitors

Specifications

Processor
Processor cache type	Smart Cache
Processor cache	33 MB
Processor frequency	1.3 GHz
Processor model	i7-14700T
Processor manufacturer	Intel
Processor boost frequency	5 GHz
Processor threads	28
Processor cores	20
Processor family	Intel® Core™ i7
Memory
Memory layout (slots x size)	1 x 16 GB
Internal memory	16 GB
Maximum internal memory	64 GB
Memory slots	2x SO-DIMM
Internal memory type	DDR5-SDRAM
Memory clock speed	5600 MHz
Memory channels	Dual-channel
Storage
Storage media	SSD
Optical drive type	No
SSD interface	PCI Express 4.0
SSD capacity	512 GB
Number of SSDs installed	1
Card reader integrated	No
Total storage capacity	512 GB
SSD form factor	M.2
Total SSDs capacity	512 GB
NVMe	Yes
M.2 SSD size	2280 (22 x 80 mm)
Self-Encrypting Drive (SED)	Yes
Graphics
Discrete graphics card	No
On-board graphics card family	Intel® UHD Graphics
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card model	Intel UHD Graphics 770
On-board GPU manufacturer	Intel
Performance
Product type	Mini PC
Trusted Platform Module (TPM)	Yes
Motherboard chipset	Intel Q670
Trusted Platform Module (TPM) version	2.0
Fingerprint reader	No
Audio chip	Realtek ALC233
Number of speakers	1
Audio system	High Definition Audio
Optical drive
Optical drive type	No
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Bluetooth	Yes
Bluetooth version	5.3
Wi-Fi standards	Wi-Fi 7 (802.11be)
Ethernet LAN data rates	100,1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
WLAN controller model	Intel Wi-Fi 7 BE200
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Antenna type	2x2
WLAN controller manufacturer	Intel

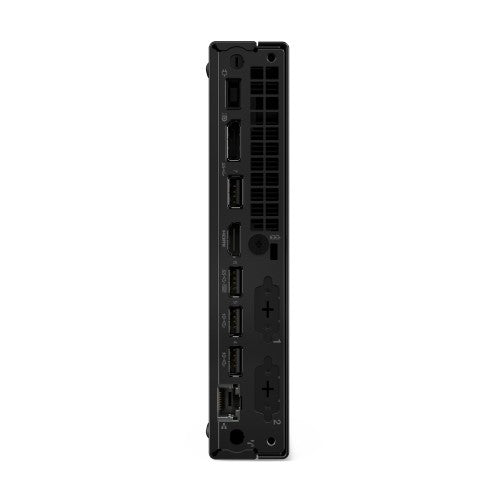

Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Thunderbolt 3 ports quantity	0
HDMI version	2.1
USB 2.0 ports quantity	0
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
DisplayPorts quantity	2
USB 3.2 Gen 2x2 Type-C ports quantity	1
Power
Power supply	135 W
Technical details
Cable lock slot type	Kensington
Product type	Mini PC
Trusted Platform Module (TPM)	Yes
Product colour	Black
Chassis type	Mini PC
Audio system	High Definition Audio
Cable lock slot	Yes
Motherboard chipset	Intel Q670
Design
Volume	1 L
Cable lock slot type	Kensington
Product colour	Black
Chassis type	Mini PC
Cable lock slot	Yes
Software
Operating system language	English
Operating system installed	Windows 11 Pro
Processor special features
Intel® Smart Cache	Yes
Audio
Audio chip	Realtek ALC233
Number of speakers	1
Audio system	High Definition Audio
Weight & dimensions
Volume	1 L
Width	179 mm
Depth	182.9 mm
Height	36.5 mm
Weight	1.25 kg
Packaging content
Mouse included	Yes
Keyboard included	Yes
Mouse connectivity	Wired
Keyboard connectivity	Wired
Certificates
Certification	TCO,RoHS,ErP
Keyboard
Keyboard connectivity	Wired
Other features
Number of speakers	1
Trusted Platform Module (TPM)	Yes
On-board graphics card	Yes
Processor manufacturer	Intel
Ethernet interface type	Gigabit Ethernet
