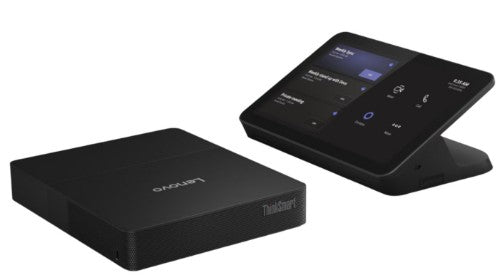

Lenovo ThinkSmart Core Gen 2 for Microsoft Team Rooms video conferencing system 13 MP Ethernet LAN

Intel Core Ultra 5 135H, 14C (4P + 8E + 2LPE), 2x8 GB SO-DIMM DDR5-5600, 256GB SSD M.2 2280 PCIe 4.0, 10.1" Touch Controller, Intel Arc Graphics, Intel Wi-Fi 6E AX211, 802.11ax 2x2 + BT5.3, Windows 11 IoT Enterprise for Collaboration GAC 64 + ThinkSmart Bar 180

Description

ThinkSmart Core Gen 2 for Microsoft Team Rooms Model: 12WN000QUK

Features
• Intel Core Ultra 5 135H 14C (4P + 8E + 2LPE) / 18T Max Turbo up to 4.6GHz 18MB Intel Smart Cache
• 2x 8GB SODIMM DDR5-5600
• 256GB SSD M.2 2280 PCIe 4.0x4 NVMe Opal 2.0
• Integrated Intel Arc Graphics
• Windows 11 IoT Enterprise for Collaboration GAC 64 English
• Case color - Black
• 3Y Premier Support Upgrade from 3Y Onsite

Compute Unit Ports
• 2x USB-C? (USB 10Gbps / 3.2 Gen 2) with DisplayPort™ 1.4
• BYOM ports
• 3x USB-A (USB 5Gbps / USB 3.2 Gen 1)
• 1x USB-A (Hi-Speed USB / USB 2.0)
• 1x HDMI?-in 2.1 TMDS
• 2x HDMI?-out 2.1 TMDS
• 2x Ethernet (RJ-45)
• 1x DC-in

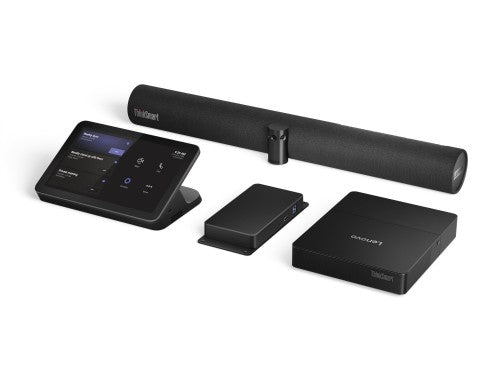

Component Options

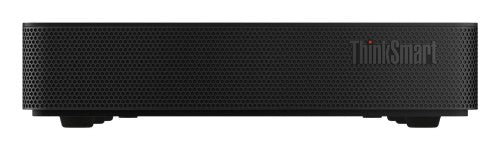

ThinkSmart? Core Gen 2
Lenovo? IP Controller
ThinkSmart? Bar 180

Controller
Lenovo? IP Controller 10.1 Touch Controller Multi-touch 1280x800 16:10 PoE HDMI?(in)

Audio Bar

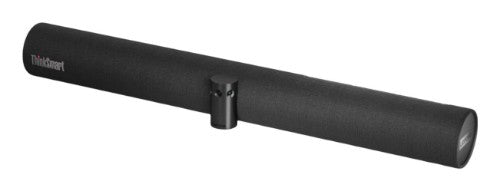

ThinkSmart? Bar 180 4x speaker (2 woofer 2 tweeters) 8x microphone 3x Camera Noise cancellation

Microphone Component
8x Mic on ThinkSmart? Bar 180 -37dBFS 100Hz - 8KHz

Camera Component
3x Camera on Thinksmart Bar 180 up to 4k@30fps 180?/54?(H/V FoV)

Dimensions (WxDxH)
Compute Unit With Cable Management 185 x 220 x 38 mm (7.28 x 8.66 x 1.50 inches) + Lenovo? IP Controller 248 x 151 x 100 mm (9.76 x 5.94 x 3.94 inches) + ThinkSmart? Bar 180 650 x 80 x 125 mm (25.6 x 3.1 x 4.9 inches)

Bundled Accessories
External Adapter Cage + Removable Cable Management Box + Lenovo? BYOM Cable for ThinkSmart? Core Gen 2 - USB-C? to USB-C? 3m + VESA Mount Bracket

Features
Teams Compatible	Yes

Specifications

Performance
Product colour	Black
Bluetooth	Yes
Bluetooth version	5.3
Technical details
Product colour	Black
Bluetooth	Yes
Bluetooth version	5.3
Video
Megapixel (approx.)	13 MP
Audio
Frequency range	80 - 20000 Hz
Number of speakers	4
Memory
Internal memory	16384 MB
Internal memory type	DDR5
Storage media type	SSD
Total storage capacity	256 GB
Memory card slot(s)	No
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB connector type	USB Type-A, USB Type-C
DC-in jack	Yes
USB 2.0 ports quantity	1
HDMI ports quantity	3
Ethernet LAN (RJ-45) ports	2
HDMI output ports quantity	2
HDMI input ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
HDMI version	2.1
Network
Ethernet LAN	Yes
Ethernet LAN data rates	100,1000 Mbit/s
Wi-Fi	Yes
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Camera
Horizontal field of view	180°
Megapixel (approx.)	13 MP
Vertical field of view	54°
Camera type	Triple camera
Display
Display diagonal	25.6 cm (10.1")
Display resolution	1280 x 800 pixels
Touchscreen	Yes
Contrast ratio (typical)	16:10
Display brightness	340 cd/m²
Anti-glare screen	Yes
Microphone
Microphone frequency	100 - 8000 Hz
Number of microphones	8
Features
Trusted Platform Module (TPM) version	2.0
Trusted Platform Module (TPM)	Yes
Computer system
Computer system type	Mini PC
Processor family	Intel Core Ultra 5
Operating system installed	Windows 11 IoT Enterprise GAC
Windows operating systems supported	Yes
Processor model	135H
Computer case
Computer system type	Mini PC
Processor family	Intel Core Ultra 5
Operating system installed	Windows 11 IoT Enterprise GAC
Power
Power consumption (max)	170 W
Power source type	AC
Weight & dimensions
Width	185 mm
Depth	220 mm
Height	38 mm
Weight	1.01 kg
Packaging content
Packaging content	External Adapter Cage + Removable Cable Management Box + USB-C to USB-C 3M Active Optical Cable + VESA Mount Bracket
