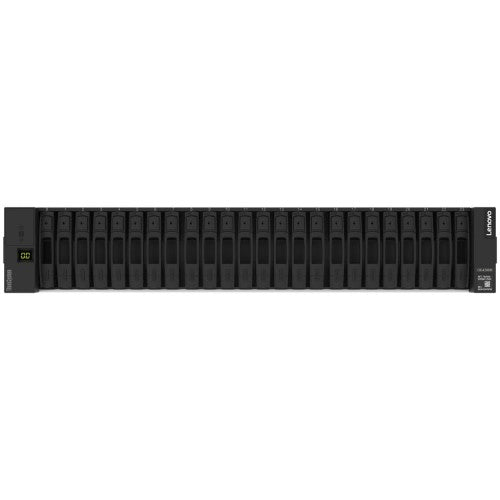

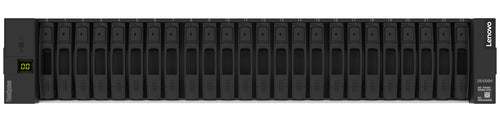

Lenovo ThinkSystem DE4200H 2U24 disk array Rack (2U) Black

(64GB Cache) HICless Hybrid Flash Array 2U24 SFF

Description

Lenovo ThinkSystem DE4200H is a scalable, hybrid entry-level storage system that is designed to provide performance, simplicity, capacity, security, and high availability for medium to large businesses. The ThinkSystem DE4200H delivers enterprise-class storage management capabilities with a wide choice of host connectivity options, flexible drive configurations, and enhanced data management features.

Specifications

Storage
Hot-swap drive bays	Yes
Supported storage drive types	HDD & SSD
Number of storage drives supported	24
Maximum supported storage capacity	1470000 TB
RAID levels	0, 1, 3, 5, 6, 10
Data transfer rate	12 Gbit/s
Supported storage drive interfaces	SAS
Storage drive sizes supported	2.5"
Ports & interfaces
RJ-45 ports quantity	1
Serial interface type	RJ-45, USB C
Host ports	12
Technical details
Device class	Small & Medium Business
Product colour	Black
LED indicators	Yes
Chassis type	Rack (2U)
Data transfer rate	12 Gbit/s
Design
Built-in display	Yes
Device class	Small & Medium Business
Product colour	Black
LED indicators	Yes
Chassis type	Rack (2U)
Performance
Device class	Small & Medium Business
Maximum number of controllers supported	2
Cache size (max)	64 GB
Maximum number of hosts supported	256
Hard drive
RAID levels	0, 1, 3, 5, 6, 10
Power
Power supply unit (PSU) capacity	913 W
AC input voltage	100 - 240 V
Redundant power supply (RPS) support	Yes
Hot-swap PSU	Yes
Weight & dimensions
Width	449 mm
Depth	511 mm
Weight	24.6 kg
Height	85 mm
Operational conditions
Storage temperature (T-T)	-10 - 50 °C
Storage relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	10 - 40 °C
Operating relative humidity (H-H)	8 - 90%
Operating altitude	0 - 3050 m
