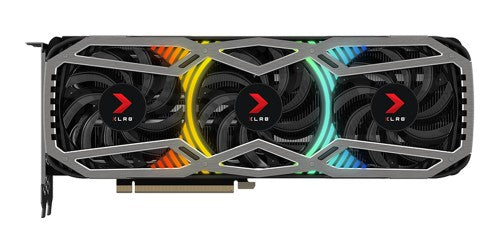

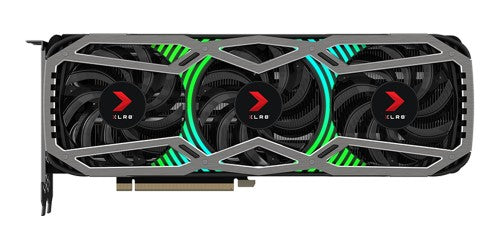

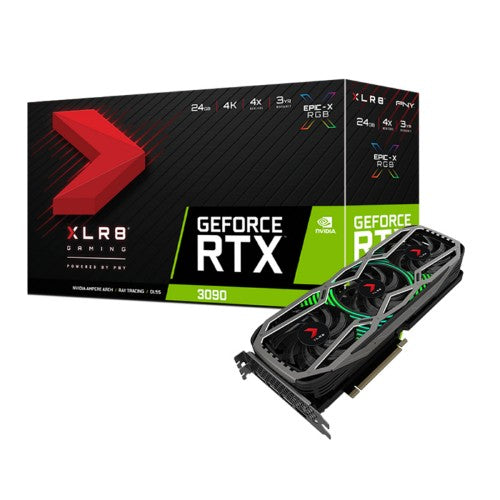

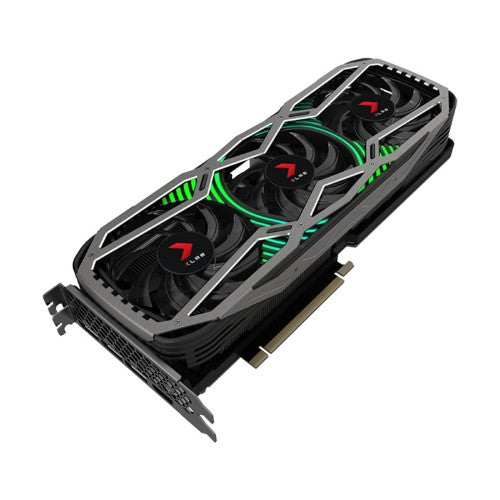

PNY GeForce RTX 3090 EPIC-X RGB Triple Fan XLR8 Gaming Edition

GeForce RTX 3090 EPIC-X RGB Triple Fan XLR8 Gaming Edition, 1395 MHz, 24GB GDDR6X, 3x DisplayPort 1.4, 1x HDMI 2.1, PCI-Express 4.0 x16

Key Features

• 2nd Gen Ray Tracing Cores
• 3rd Gen Tensor Cores
• PCI Express® Gen 4
• Microsoft DirectX® 12 Ultimate
• GDDR6X Graphics Memory
• NVIDIA DLSS
• NVIDIA® GeForce Experience™
• NVIDIA G-SYNC®
• NVIDIA GPU Boost™
• NVIDIA NVLink™ (SLI-Ready)
• Game Ready Drivers
• Vulkan RT API, OpenGL 4.6
• HDCP 2.3
• VR ready

Description

NVIDIA Ampere Streaming Multiprocessors

The building blocks for the world’s fastest, most efficient GPU, the all-new Ampere SM brings 2X the FP32 throughput and improved power efficiency.

2nd Generation RT Cores

Experience 2X the throughput of 1st gen RT Cores, plus concurrent RT and shading for a whole new level of ray tracing performance.

3rd Generation Tensor Cores

Get up to 2X the throughput with structural sparsity and advanced AI algorithms such as DLSS. Now with support for up to 8K resolution, these cores deliver a massive boost in game performance and all-new AI capabilities.

GRAPHICS REINVENTED

The GeForce RTX™ 3090 is a big ferocious GPU (BFGPU) with TITAN class performance. It’s powered by Ampere—NVIDIA’s 2nd gen RTX architecture—doubling down on ray tracing and AI performance with enhanced RT Cores, Tensor Cores, and new streaming multiprocessors. Plus, it features a staggering 24 GB of G6X memory, all to deliver the ultimate gaming experience.

The all-new NVIDIA Ampere architecture features new 2nd generation Ray Tracing Cores and 3rd generation Tensor Cores with greater throughput. The NVIDIA Ampere streaming multiprocessors are the building blocks for the world’s fastest, most efficient GPU for gamers and creators.

GeForce RTX 30 Series GPUs are powered by NVIDIA’s 2nd gen RTX architecture, delivering the ultimate performance, ray-traced graphics, and AI acceleration for gamers and creators.

Specifications

Processor
FireStream	No
Graphics processor family	NVIDIA
Processor frequency	1395 MHz
Processor boost clock speed	1695 MHz
Parallel processing technology support	NVLink
Maximum displays per videocard	4
CUDA cores	10496
CUDA	Yes
Maximum resolution	7680 x 4320 pixels
Graphics processor	GeForce RTX 3090
Memory
Discrete graphics card memory	24 GB
Data transfer rate	19.5 Gbit/s
Memory bandwidth (max)	936 GB/s
Memory bus	384 bit
Graphics card memory type	GDDR6X

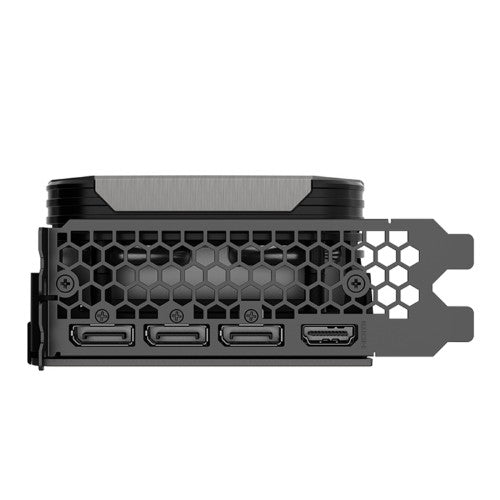

Ports & interfaces
HDMI version	2.1
HDMI ports quantity	1
DisplayPort version	1.4
DisplayPorts quantity	3
Interface type	PCI Express x16 4.0
Video
DirectX version	12.0
OpenGL version	4.6
HDMI version	2.1
HDCP	Yes
Dual Link DVI	No
CUDA cores	10496
Performance
NVIDIA G-SYNC	Yes
Virtual Reality (VR) ready	Yes
DirectX version	12.0
OpenGL version	4.6
HDCP	Yes
Dual Link DVI	No
Design
Number of fans	3 fan(s)
Illumination colour	Multi
Illumination	Yes
Cooling type	Active
Number of slots	2.7
Power
Supplementary power connectors	2x 8-pin
Power consumption (typical)	350 W
Weight & dimensions
Number of slots	2.7
Height	112 mm
Depth	56 mm
Length	294 mm
Technical details
Cooling type	Active
Harmonized System (HS) code	84733020
Logistics data
Harmonized System (HS) code	84733020
